플라스틱 건물 판 압출 라인

기술의 지속적인 발전과 시장 수요의 성장으로 인해 Longchangjie Machinery가 생산 한 플라스틱 건물 판 압출 라인의 응용 전망은 훨씬 더 넓을 것입니다. 건설 프로젝트의 안전성과 효율성을 향상시킬뿐만 아니라 녹색 건물 개발에도 기여합니다.

문의 보내기

제품 설명

1.Product Description

Working principle of Plastic Building Plate Extrusion Line:

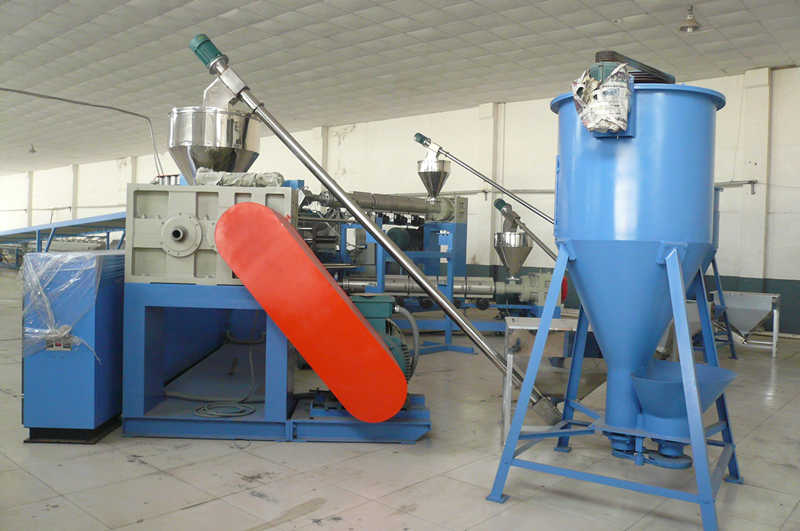

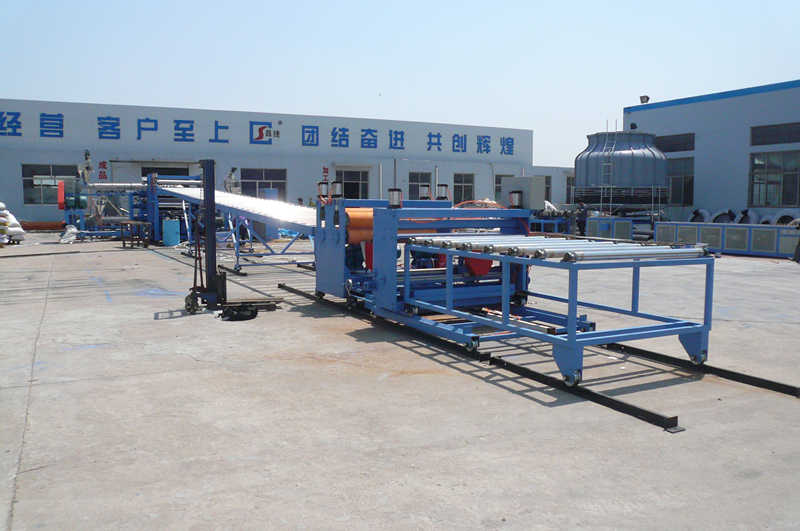

The working process of the plastic building formwork production line is efficient and orderly. Firstly, the raw material plastic particles are guided into the plastic extruder through the material frame, where they are melted and extruded into shape under high temperature and high pressure. Then, the molten plastic is precisely formed through the mold to form the initial sheet. Subsequently, the sheet undergoes heat treatment with a heater and cooling treatment with a cooler to ensure its structural stability and dimensional accuracy. Finally, through precise cutting by a cutting machine, plastic building formwork products that meet the requirements are obtained. The entire process is highly automated to ensure production efficiency and product quality.

2.Product Parameter(Specification)

Specifications and models of the Plastic Building Plate Extrusion Line:

Technical specifications(PVC Building Template Board)

Model of Main Machine	SJSZ-80/156 Twin Screw Extruder	SJSZ-92/188 Twin Screw Extruder
Screw Diameter(mm)	80	92
Screw Number(pcs)	2	2
Rotation Speed of Screw(rpm)	1-38	1-33
Power of Main Machine(kw)	55	110
Heating Power(kw)	36	45
Extrusion Capacity	100-400	400-800

Technical Specifications(PP/PE Five Co-Extrusion Building Template Board)

Model of Main Machine	SJ-120/33 Single Screw Extruder	SJ-90/33 Single Screw Extruder
Screw Diameter(mm)	120	90
Screw Number(pcs)	1	1
L/D Ratio	33:1	33:1
Power of Main Machine(kw)	132	55
Breadth(mm)	900-1220
Thickness(mm)	Middle Mould:8-14mm, Upper Mould:1-5mm, Lower Mould:3-8mm
Installed Power(kw)	430
Extrusion Capacity	500
Diemension of Machine(mm)	33000100005000

3.Product Feature And Application

Product Feature of the Plastic Building Plate Extrusion Line:

1. Efficient production

The production line features high output and low energy consumption, significantly enhancing the production efficiency of the construction industry and shortening the project cycle.

2. Cost savings

Advanced extrusion technology and automated equipment are adopted to reduce production costs.

3. Environmentally friendly and sustainable

Plastic building formwork can be recycled and reused, meeting the requirements of green industry and reducing pollution to the natural environment.

4. The product has superior performance

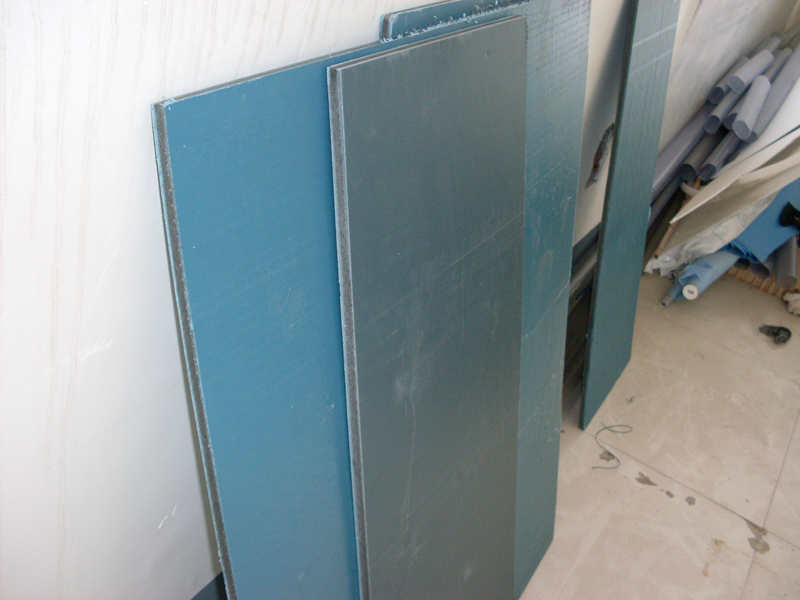

The plastic formwork produced has the advantages of light weight, high strength, corrosion resistance, water resistance and fire resistance.

5. Flexible customization

The production line can customize formwork products of different specifications and performances according to customer needs, meeting the demands of various construction projects and providing diversified solutions.
